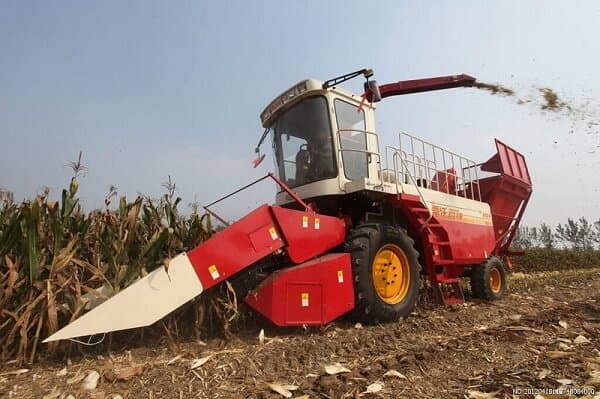

Three-row Self-propelled Corn Harvester Introduction
This is a professional three row corn harvester used for harvesting corn/maize cobs without husk (it is equipped with stripping system). It is independently developed by our company, employing advanced European technology that has been granted national patent, learning advanced home technology as well as combining our own development experience.
Harvester Highlights
- It is a combine corn harvester with 3 rows, finishing corncob picking, stripping, conveying, assembling, uploading and corn straw crushing synchronously.
- Self-propelled machine, hydraulic step-less speed adjustment.
- Cutter bar hydraulic control lifting, good adaptability of harvesting height and row space.
- Huge grain tank, hydraulic control turning, high efficiency and time-saving.
- Compact structure, high agility, low harvesting loss rate with few impurities.
- Corn stalk can be returned back to the field as customer required.
- Equipped with reversing radar, improving the driving safety.
- Suitable for large area/land corn harvesting with large capacity.
-
How Does It Work?
Modern corn combine harvester performs corncob picking, stripping, conveying, assembling, uploading, corn straw crushing and more as it is driven through the fields. And the harvester is working as following: separating cobs from the stalks, cleaning the cob, ransporting cobs into the hopper and discharging the hopper of the trailer.
Combine Harvester Working Video
Related Equipment:
Three-row Self-propelled Corn Harvester Specification
|
Model
|
AMS-CH3A
|
|---|---|
|
Type
|
self-propelled corn combine harvester + peeling
|
|
Working rows
|
3
|
|
Total loss rate
|
≤4
|
|
Broken rate
|
≤1%
|
|
Roughage content
|
≤1.5%
|
|
Reliability
|
≥95%
|
|
Engine
|
125hp
|
|
Dimension (L×W×H)
|
7580×2150×3450mm
|
|
Weight
|
6050kg
|
|
Oil consumption
|
≤30Kg/ hm2
|
|
Ground clearance
|
350mm
|
|
Maximum unloading height
|
1650mm
|
|
Grain tank
|
2.5 m3
|
Technical data
| Model | AMS-CH3A |
|---|---|
| Grain tank(m3) | 2.5 |
| Ground clearance(mm) | <=350 |
| Loss rate(%) | <=4 |
| Maximum unloading height(mm) | 1650 |
| Oil consumption(Kg/ hm2) | <=30 |
| Potato injury rate(%) | <=1 |
| Reliability(%) | >=95 |
| Roughage content(%) | <=1.5 |
| Size(mm) | 7580*2150*3450 |
| Structure type | self-propelled corn combine harvester + peeling |
| Total Power(HP) | 125 |
| Weight(Kg) | 6050 |
| Working Rows(Ridges/Rows) | 3 |
