Piggery Hot Blast Heater Introduction
Ideal house temperature has a substantial influence on pig health and performance. Therefore, adequate heating system is required in many climate zones. The hot blast heater we supply is a kind of brand-new tempering system which has a wide applicable area and can maximize thermal emission and transfer it to the piggery in the best possible way to keep energy cost at a minimum.
Features & Application
- Wide applicable area: 300㎡-1700㎡ for choice
- The smoke outlet adopts air-inducing device: no smoke dust in upper smoke chamber; making the fuel fully burn
- Tridimensional combustion chamber: large volume, large heating area; long time interval to fill in the fuel, reducing labor intensity
- Improved and advanced heating exchange device: prolonging the furnace service life
- Available for any kind of coal type: lump coal, hard coal, bituminous coal and powder coal, but the lump coal has the best burning effect
- Secondary air supply device: the combustible gas can be converted into heat after the secondary burning, saving energy, heating fast and long time heat preservation
- Multiplex computer temperature control: controlling room temp and water temp as well as fans at the same time.
-

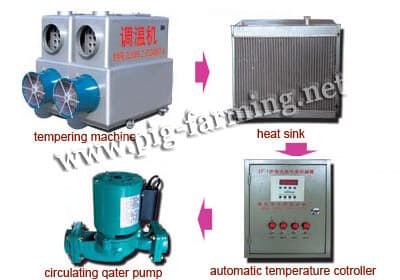

Hot Air Stove Heating System Composition
Host(tempering machine)
The main fuel for hot blast heater machine is coal and the machine is equipped with axial-flow fan, supplying not only air heating but also water heating; water heating system has safe and reliable performance for its normal-pressure design; air heating system has more than 95% heat-utilization efficiency for its multi air duct design.
Auxiliary Machine
Main parts are heat sink and thermal fan; used for emitting the heat from hot water to realize the heating effect.
Intelligent Temperature Controller
A new-type intelligent controller used for real-time management of time, temperature and water temp; automatically managing production process according to the set procedures.
Circulating Water Pump
Used for sending the hot water in the furnace to the heating sink and then re-sending the water to the furnace after cooling.
Tempering Machine Technical Data
|
Model
|
JH-I
|
JH-II
|
JH-III
|
JH-IV
|
JH-V
|
|---|---|---|---|---|---|
|
Rotate speed(r/min)
|
1450
|
1450
|
1450
|
1450
|
1450
|
|
Air supply(m³/h)
|
4200
|
5000
|
5000
|
8000
|
9000
|
|
Air pressure (Pa)
|
270
|
315
|
315
|
443
|
443
|
|
Power(kw)
|
0.37
|
0.55
|
0.55
|
0.75
|
0.75
|
|
Voltage(v)
|
220
|
380
|
380
|
380
|
380
|
|
Air delivery (m)
|
60
|
60
|
80
|
100
|
100
|
|
Dimension (mm)
|
1390*700*1150
|
1690*750*1360
|
1890*850*1460
|
2000*900*1590
|
2180*950*1650
|
|
Heat(10000 kcal)
|
6
|
12
|
18
|
24
|
30
|
|
Coal consumption(kg/h)
|
12
|
24
|
36
|
48
|
60
|
|
Weight(kg)
|
228
|
308
|
406
|
526
|
560
|
|
Thermal power (%)
|
95%
|
95%
|
95%
|
97%
|
97%
|
|
Heating temp. (℃)
|
160
|
160
|
160
|
160
|
160
|
|
Heating area (㎡)
|
300
|
500
|
800
|
1200
|
1700
|
|
Breeding area (㎡)
|
150
|
300
|
450
|
600
|
800
|
Auxiliary Machine Technical Data Model
|
Model
|
Rotate speed (r/min)
|
Air supply(m³/h)
|
Air pressure(Pa)
|
Motor power(kw)
|
Voltage(v)
|
Dimension(mm)
|
|---|---|---|---|---|---|---|
|
FA-50C
|
1420
|
2800
|
180
|
0.18
|
220
|
1390*700*1120
|
|
SFG5-4
|
1450
|
9240
|
190
|
0.75
|
380
|
850*840*300
|
|
SF613-4
|
1420
|
6000
|
150
|
0.55
|
220
|
850*840*300
|
