Introduction
This three-row reaper binder is mainly used to harvest and bind low-stem crops such as wheat, rice, grass, barley, oat, reed and straw, etc. It has three-row working structure which makes it very convenient for farming work, to meet the requirements of customers.
Three-row Reaper Binder Features
- Widely used for wheat, rice, barley, grass, oat, reed and straw, etc. low stem crops;
- Integrating the functions of cutting and bundling, saving working labor and time;
- Great adaptation and flexibility, suitable for plains, hills, slopes and mountain areas or the areas where is not available for general reaper binder;
- Adjustable steer control handle bar with around 180°, vertical 30° angle adjustment, easy and convenient to control;
- Stable performance with the shaft drive system;
- High threshing ability, low fuel consumption and less than 1% seeds loss rate;
- The bundling size and tightness can be regulated as required.
-
Reaper Binder Machine Application
- The reaper-binder machine is a popular machine among farmers. It is used in the harvesting of many kinds of crops like wheat, rice, barley, etc.
- Reaper-binder equipment is applicable in the plains, hills, slopes, small fields and mountains or areas where general combined harvesters can not enter in.
-
Potential Market of Reaper Binder
With the features of multi function and high adaptation, this kind of binder has a vast potential market. Wheat, rice and other grain crops are widely grown all over the world and people of these areas have realized the mechanization of agriculture. While there are still some areas like hills, mountains and slopes that are not available for large machines, the mini reaper binder machine is very flexible and can adapt to different land forms. This machine will offer great help for farmers in these areas and be welcomed by most of these farmers.

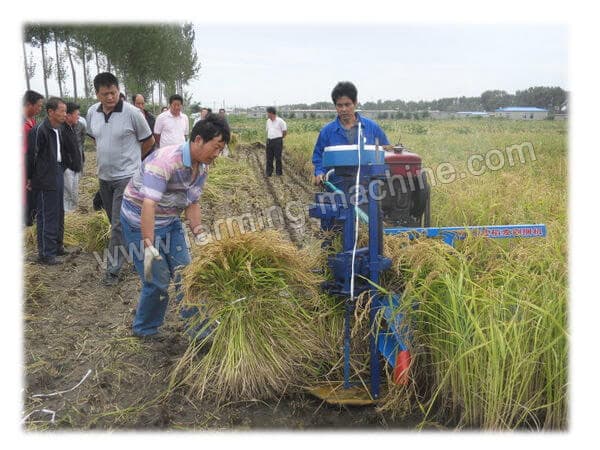

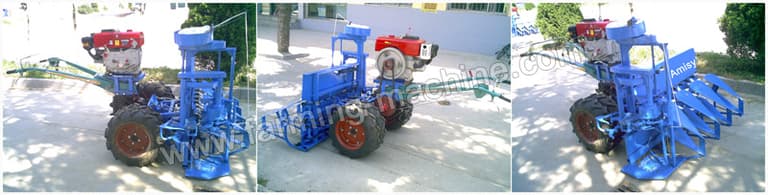

Machine Show
Three-row Reaper Binder Technical Data
|
Model
|
AMS-RCB100
|
|---|---|
|
Structure
|
Wheel tyre Self-propelled
|
|
Matched power
|
8-12hp
|
|
Working rows
|
3 rows
|
|
Working width
|
1000 mm
|
|
Working speed
|
≥ 1 km/h
|
|
Working productivity
|
0.17-0.2 hm2/h
|
|
Fuel consumption |
≤7.5kg/hm2
|
|
Binding type
|
Automatic
|
|
Rope type
|
Plastic rope
|
|
The total loss rate |
≤1
|
|
Reliability
|
≥90%
|
|
Weight
|
300kg
|
|
Dimension (L×W×H)
|
800 x 1500 x 1200 mm
|
|
Operator
|
1 people
|
