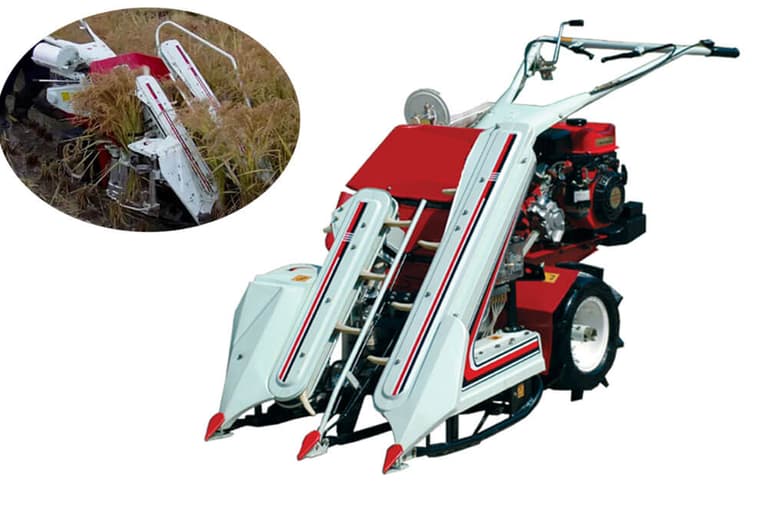

Two-row Reaper Binder Introduction
With more than 30 years’ experience in manufacturing the reaper binder and high reputation from our customers around the world, we supply the excellent two-row reaper binder for cutting and bundling the low stem crops like wheat, rice, barley and oats, etc grown in small fields, plains, hills, slopes and mountain areas or the areas that are not available for the general reaper binder machine.
Tips: We Also Supply Three-row Reaper Binder
Main Features
- Multi-functional: can be used for many kinds of low stem crops;
- High adaptation: suitable for many different kinds of land forms, such as hills, slops, mountains, etc;
- High flexibility, compact structure and small volume: easy to operate in the fields;
- Adjustable steer control handle bar with adjustment to up and down, left and right (around 180°, vertical 30°): more flexible to be handled in different environments;
- Shaft-driving system: more stable and safe working condition;
- High reliability and low fuel consumption: more than 90% reliability and less than 8 kg fuel per hm2;
- Using advanced technology makes the grain binder good threshing ability and low loss rate, less than 1%;
- The bundling size and tightness can be regulated as required;

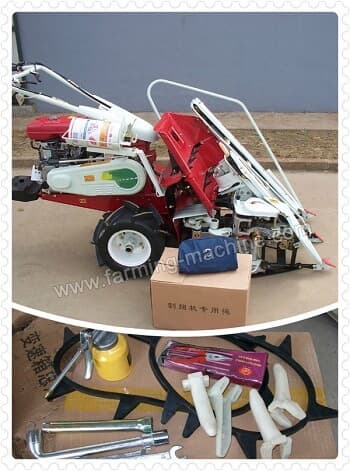

- Some machine accessories are attached to present.
 |
 |
Two-row Reaper Binder Technical Parameters
|
Model
|
AMS-RCB60
|
|---|---|
|
Structure
|
Self-propelled
|
|
Matched power
|
6hp
|
|
Working rows
|
2 rows
|
|
Working width
|
500-600 mm
|
|
Working speed
|
1.4~3.8 km/h
|
|
Working productivity
|
≥0.12 hm2/h
|
|
Fuel consumption |
≤8km/hm2
|
|
Binding type
|
Automatic
|
|
Rope type
|
Plastic rope |
|
The total loss rate |
≤1
|
|
Reliability
|
≥90%
|
|
Weight
|
240kg
|
|
Dimension (L*W*H)
|
2050*800*1055 mm
|
|
Operator
|
1 people
|
Technical Maintenance of Reaper Binder
1. After work
- Clean the residual weeds and dirt;
- Check if the fastening piece and connecting piece loosen;
- Add lube timely in the engine, bundling device;
- Check if the control parts flexible and reliable.
2. Seasonal maintenance
- Wash the machine parts and set to dry out;
- Dry the parts that are not easy to dry with cloth;
- Lubricating the parts that are easy to rust;
- Exhaust the oil in the fuel tank when it is not working.
