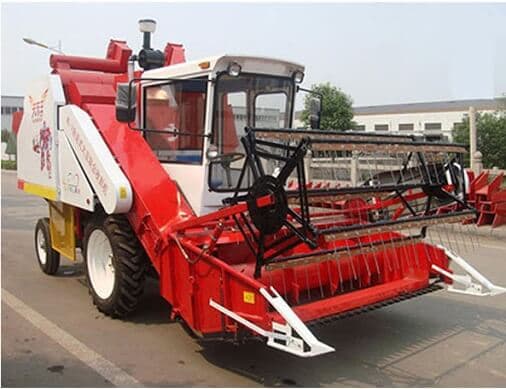

Soybean Combine Harvester Introduction
4LZ-1.6 type self-propelled soybean harvester, with a shape-mimicking floating cutting header, can complete the processes of soybean crop harvesting, threshing separation, cleaning, collecting, and stacking and recycling of bean straw and bean skin in one go. This machine is a dedicated soybean combine harvester, with low breakage rate, high cleaning degree, and excellent harvesting performance.
Soybean Combine Harvester Advantage
- Equipped with 140 horsepower engine, strong power.
- Front wheel 11.2-24, rear wheel 7.5-20, mechanical four-wheel drive (1.6A model is two-wheel drive), high ground clearance, good passing performance
- Closed cab, floating seat, hard-connected gear, comfortable operation
- Using a profiling floating header, the cutter floats and cuts along with the landscape without leaking pods.
- The reel speed is infinitely adjustable to adapt to various yields of soybeans.
- A stacking and recycling device is thoughtfully installed at the rear of the machine to collect soybean straw and bean hulls as fodder, helping users obtain higher profits.
-

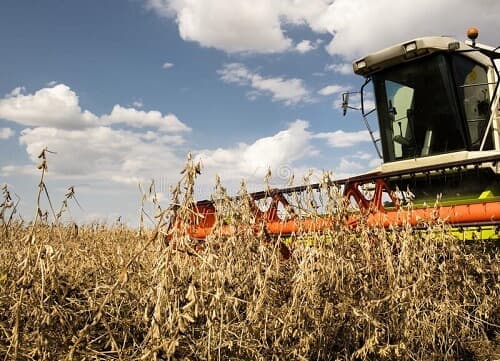

Working Process of Soybean Combine Harvester
The harvesting of soybeans include three processes which is reaping, threshing and cleaning. First, the cutter of the harvester cuts the soybeans. As the harvester machine drives through the field, the soybeans are pulled into the harvester in the front section, namely the head then the soybeans are collected by the rotating reel and cut by the cutter. Then the soybeans are fed into the threshing cylinder where the soybeans are separated from the plants. Finally, the cleaning process is accomplished by using air blower.
-
Why Choose Us?(Soybean Harvester Review)
- Good Performance and High Working Reliability.
- Long Time Guarantee and Best After-sale Service.
- Competitive Price with Good Quality.
- Low Energy Consumption.
Technical Specification
| Model | 4LZ-1.6 |
|---|---|
| By Wheel | 4WD |
| Work Productivity(hm²/h) | 0.2~0.47 |
| Working Speed (km/h) | 1.5~6 |
| Mini Clearance(mm) | 270 |
| Dimension (L×W×H)(mm) | 6400×2000×3300 |
| Cutting Width(mm) | 2560 |
| Feeding Speed(kg/s) | 1.6 |
| Power(HP) | 140 |
| Total Weight | 4050 kg |
| Wheel Base(mm) | 2000 |
| Max Unload Height(mm) | 3000 |
| Fuel Consumption(Kg/h㎡) | ≤35 |
| Unloading Type | Mechanical automatic |
| Header Type | Contoured floating |
| Model | 4LZ-9L |
|---|---|
| By Wheel | 2WD |
| Work Productivity(hm²/h) | 0.8~1.5 |
| Power(HP) | 190 |
| Working Width(mm) | 2840 |
| Total Weight(kg) | 6010 |
| Dimension (L×W×H)(mm) | 7300×3050×3420 |
| Engine Speed(r/min) | 2200 |
| Feeding Quantity(kg/s) | 9 |
| Model | 4LZ-10L | 4LZ-10LS |
|---|---|---|
| By Wheel | Front-wheel Drive | Four-wheel Drive |
| Work Productivity(hm²/h) | 2.0~3.6 | 2.0~3.6 |
| Power(HP) | 200 | 200 |
| Working Width(mm) | 3000 | 3000 |
| Total Weight(kg) | 6810 | 6900 |
| Dimension (L×W×H)(mm) | 7180×3300×3570 | 7180×3300×3570 |
| Engine Speed(r/min) | 2200 | 2200 |
| Feeding Quantity(kg/s) | 10 | 10 |
