Auto steering system
- Precision Discrepancy: < ±2.5 cm
- Operating Speed: 0.1–18 km/h
- Operating Temperature: -30 °C–75 °C
- Storage Temperature: -40 °C–85 °C
Auto steering system Introduction

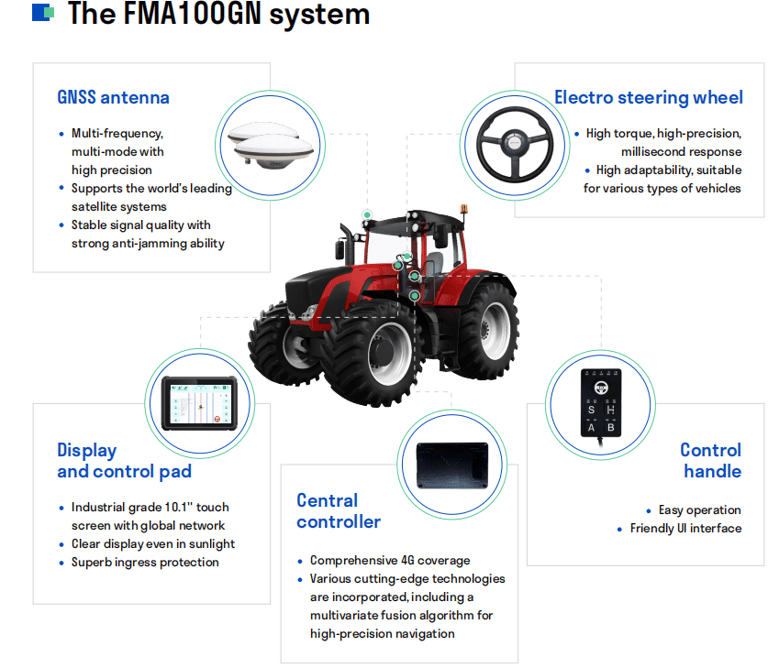

Through the incorporation of cutting-edge technologies like 4G communication, auto control, GNSS high-precision positioning, satellite+IMU navigation and an IoT platform, FMA100GN seamlessly spans the entire spectrum of agricultural processes - from cultivation to planting, management and harvest. It achieves increased agricultural production and efficiency via broad-area wireless connectivity, centimeter-level ultra-precise positioning and radio communication, even in areas with weak network signals.
Auto steering System Advantages
- Exceptional performance in offline mode: Able to continue navigating even when offline for up to 10 minutes
- Extensive options, cost effective: Includes customization options: optional installation of a display and control pad, control handle or angle sensor
- Job saving, efficient reuse: The system saves past tasks permanently, for re-use in similar fields without reconfiguring parameters or debugging
- Convenient installation, simple operation: Full installation and set up in just 1 hour
- Diverse &dependable applications: Suitable for diverse and challenging terrain, maintaining reliable speeds and capable of performing effectively with a 2.5cm offset error
- OTA interconnection, intimate support: OTA upgrades, remote assistance, and 24/7 after-sales services for prompt support
- High-resolution display with fine details: The on-board pad offers high-precision real-time display, enabling more accurate linear operation
- Singular solution,multifaceted capabilities: Suitable for a variety of self-propelled agricultural machines
How to Install an Automatic Steering System
Auto steering system Common Specifications and Parameters
| GNSS | |
|---|---|
|
Positioning accuracy
|
Horizontal: 0.8 cm + 1 ppm
Vertical: 1.5 cm + 1 ppm
|
|
Orientation accuracy (RMS)
|
0.2°/ 1 m baseline
|
|
Positioning frequency
|
20 Hz
|
|
Ingress Protection for GNSS antenna
|
IP67
|
|
Electric motor
|
|
|
Rated voltage
|
12 V DC
|
|
Supply voltage
|
7–32 V DC
|
|
Rated torque
|
7 N·m
|
|
Peak torque
|
16 N·m
|
|
Max. continuous rotate speed
|
100 r/min
|
| Display & Control Pad | |
| Size (inches) | 10.1 |
| Resolution | 1024×600 |
| Memory | 2G RAM+16G ROM |
| Ingress Protection | IP65 |
| System Performance | |
| Precision Discrepancy | < ±2.5 cm |
|
Operating Speed
|
0.1–18 km/h |
| Communication | 4G Global network |
|
Applicable to
|
wheeled tractors,transplanters, plant protectionmachines, etc.
|
|
Temperature characteristics
|
|
|
Operating
|
-30 ℃–75 ℃
|
|
Storage
|
-40 ℃–85 ℃
|
