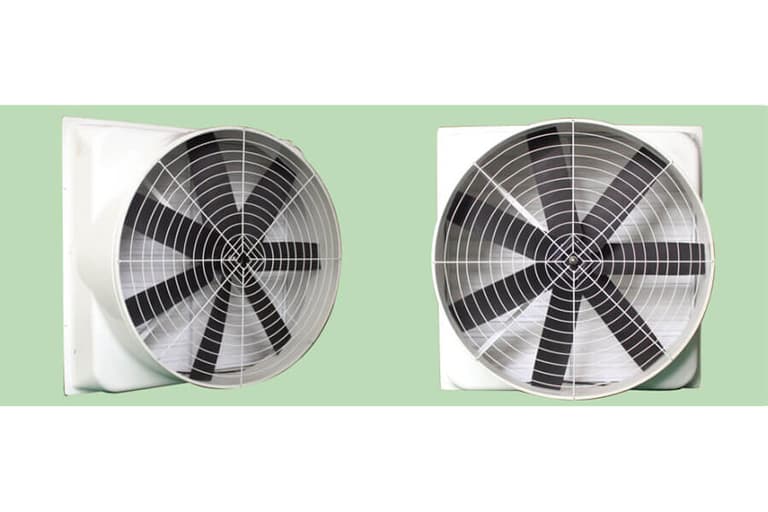

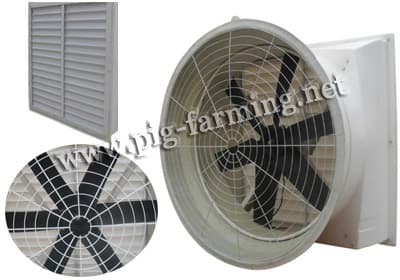

Fiber Reinforced Plastic Fan Introduction
The scorching weather has a strong impact on health and production of pigs, so some effective cooling measurements should be taken to ensure the normal growth and production of pigs. Our FRP fiber reinforced plastic fan is kind of newest cooling device which is mainly applied to negative-pressure ventilating-cooling.
Fiber Reinforced Plastic Fan Features
- Multifunction: it has cooling function and ventilating function;
- Small operating cost: large air volume design with low energy cost of 0.75kw;
- Anti-corrosion and weathering-preventing, long service life: the fan casing and the motor bracket are made of fiber reinforced plastic, the louver is made of PVC material, the fan blade is made of nylon-fiber material and the motor is level-10 GB copper core;
- Low noise: no resonance effect for its advanced design and particular materials;
- Low failure rate, no easy wear parts.
-
Application
- This fan can be applied to positive-pressure evaporative cooling pad, Eco-friendly air conditioner and positive-pressure air blast, etc.
- It also can be used in office buildings, markets, movie theaters, hospitals, factory workshops and basements, etc for ventilating and exhausting.
-
The Necessity about Cooling System for Piggery in Hot Summer Days
Usually in summer, there is 4-month scorching weather. The temp. is 25℃～35℃ and the humidity is ≥70%. The pig is kind of homothermal animal with thick subcutaneous fat and underdeveloped sweat gland, and the hot-humid weather has a strong impact on pigs’ production and breeding, including feed intake, daily gain, feed utilization rate, sows’ pregnant-farrowing rate and piglets’ survival rate, etc. So in hot summer days, the pig house ventilation and cooling is very important to ensure high efficiency of pig farming.
Fiber Reinforced Plastic Fan Specifications
|
Model
|
Diameter of fan blade
|
Rotation speed of fan blade
|
Air volume
|
Noise
|
Input power
|
Rated voltage
|
High
|
Width
|
|---|---|---|---|---|---|---|---|---|
|
BLG-54"
|
1250mm
|
450rpm
|
58300m³/h
|
≤75db
|
750w
|
380v
|
1380mm
|
1380mm
|
|
BLG-48"
|
1100mm
|
450rpm
|
45500m³/h
|
≤70db
|
750w
|
380v
|
1220mm
|
1220mm
|
|
BLG-42"
|
950mm
|
450rpm
|
35000m³/h
|
≤70db
|
550w
|
380v
|
1070mm
|
1070mm
|
|
BLG-36"
|
750mm
|
450rpm
|
25200m³/h
|
≤65db
|
550w
|
380v
|
915mm
|
915mm
|
