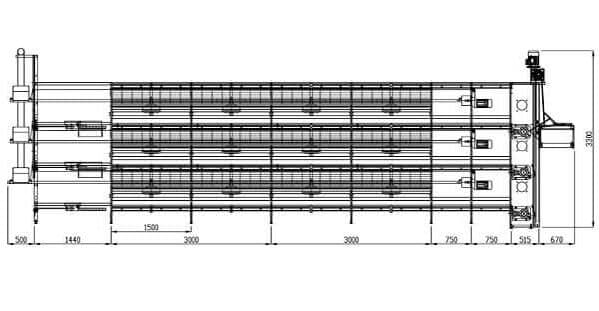

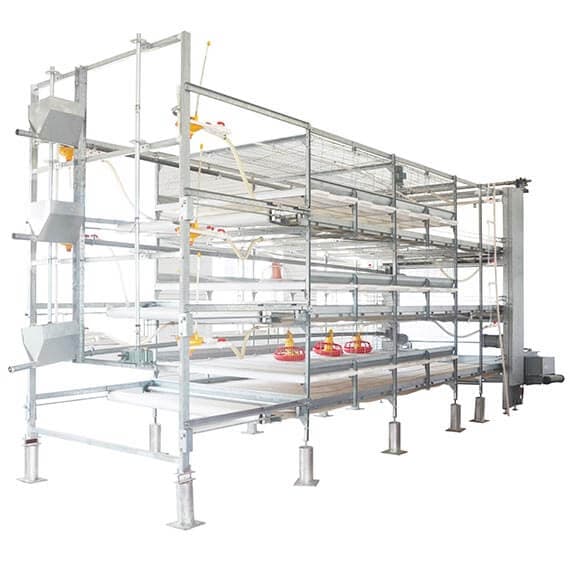

Automatic Bird-Harvesting Broiler Chicken Cage

The automatic bird-harvesting H type broiler raising cage is the most advanced broiler raising equipment. It can realize not only feeding,drinking,manure removing automatically,but also broiler-harvesting automatically.It is suitable for large-scale broiler farm.

In a house of 97m*20m, if 3 tier cages are installed, 30 units of cage per line, the height of side wall should be 4m, and total birds quantity is 59400; if 4 tier cages are installed, 30 units of cage per line, the height of side wall should be 4.5m, and total birds quantity is 79200.

Automatic Bird-harvesting

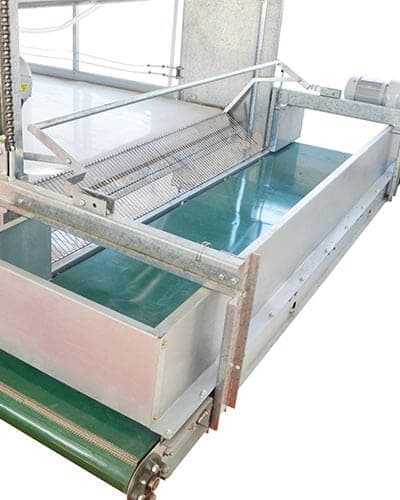

The height of birds conveying system can be adjusted to transfer birds from each tier of cage to outside.

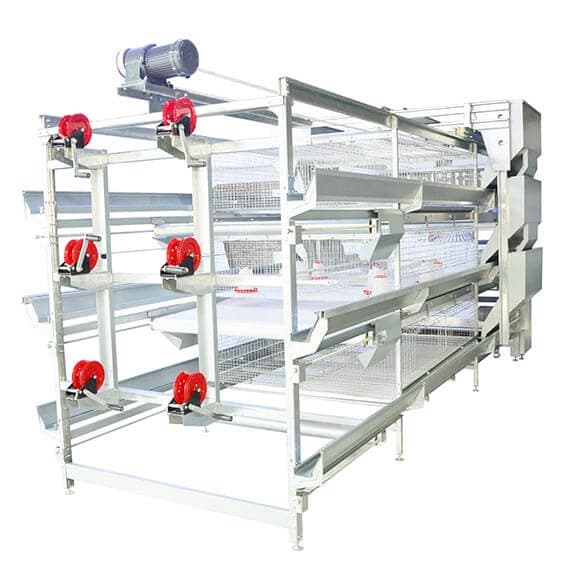

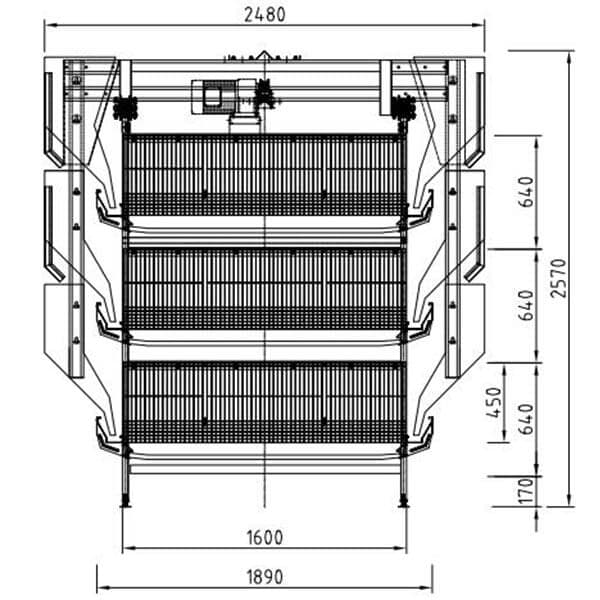

Manual Bird-Harvesting Broiler Chicken Cage

The full set of equipment using hot-dip galvanized material, corrosion-resistant, which ensures the service life of 15-20 years.

Intensive management and automated control. Achieve automatic feeding,drinking,manure cleaning, and environment control,can help to improve working efficiency and save labor cost.

High-density raising,saves land and investment.

Suitable for closed chicken house. Automatic control of ventilation and temperature can meet the requirement of the birds.

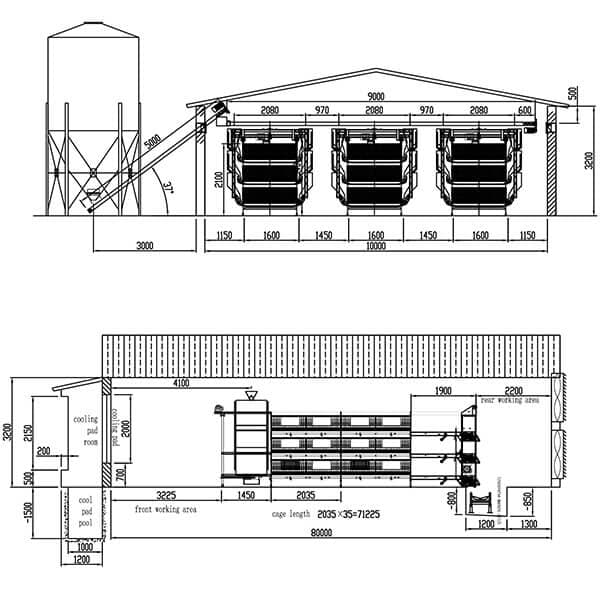

In a house of 80m*10m*3.2m,3 tiers cages are installed,35 units cage per line,if the adult broiler weight is 2.5kg,the total bird quantity is 20160 birds.If the adult broiler weight is 1.8kg,the total bird quantity is 27720 birds.

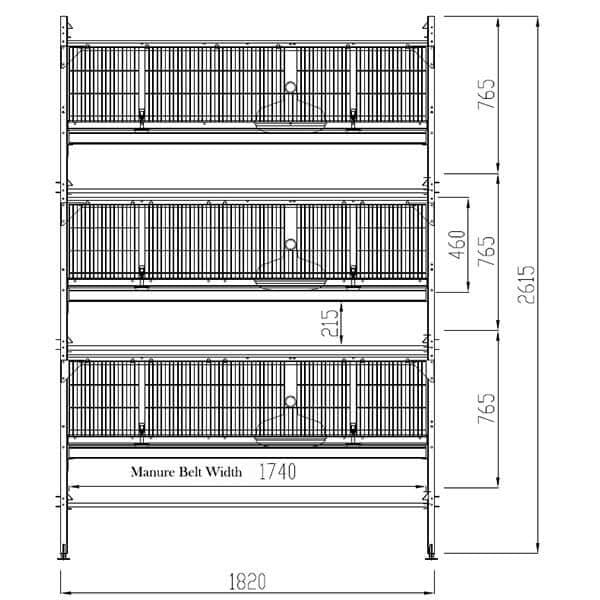

There are 6 cells in each unit; amount of birds per unit: 192; Each cell has 2 rooms: each room has 16 birds; colony area: 500 C㎡.
Cage height: 450mm Each cell area:8000C㎡.

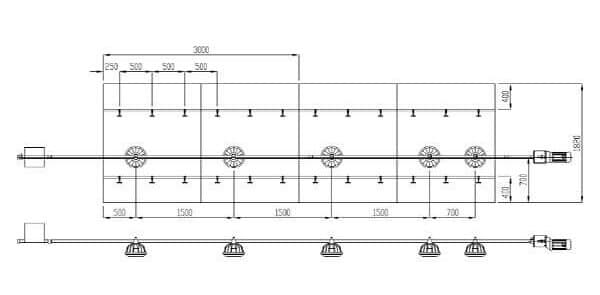

Automatic Feeding

Automatic Drinking System

Auto Manure Clearing System (Belt Type Manure Cleaning System)

Smart Environment Control System
