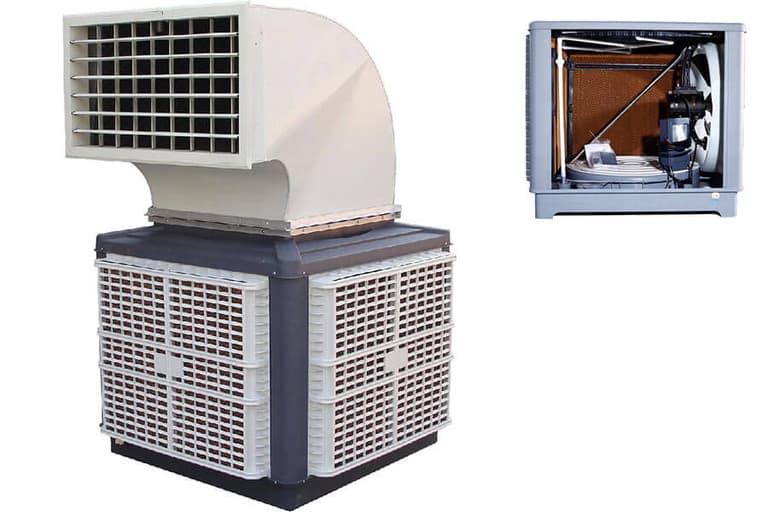

Evaporative Air Cooler

    Evaporative Air Cooler

    Air Ventilation Cooler Introduction

    This evaporative air cooler is a kind of water-cooled air conditioner, integrating the functions of cooling, ventilating, dust preventing and smell removing. Because it is energy-saving and Eco-friendly, this air cooler is widely used in stock barns, workshops and some public places to bring fresh air and comfortable temp, especially popular in pig house.



    The Features

    • Integrating the functions of cooling, ventilation, dust preventing and smell removing, increasing the air oxygen content and improving working efficiency.
    • Efficiently exhausting the hot-smelly air without shutting the door and window.
    • Great cooling effect: about 5-9℃ temperature; reduction in humid area and about 10-15℃ in hot-dry area.
    • Low investment, small occupied area, low power consumption and large air output.
    • Easy to install and maintain, no solid technical background is required.

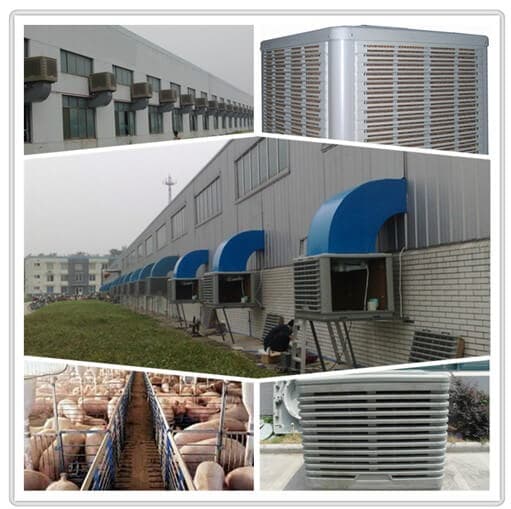

    • pig farming evaporative cooling

      Evaporative Air Cooler Application

      • Equipment rooms to ensure the stable performance and maximum working life of equipments
      • Public places to ensure the fresh air and comfortable temp.
      • Commercial places to ensure the healthy and sanitary environmen.
        Spaces with no need of fully cooling to save power resources and operation cost
        Food processing industry, etc to shorten products cooling time, improving production efficiency and quality
        Greenhouses to promote plants growth
        Large kitchens in hotels to ensure good ventilation, bettering the hot work environment

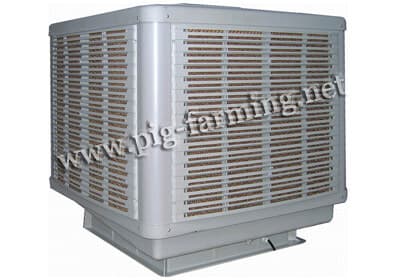

    • AIR COOLER FOR FARM

      Maintenance

      To make the evaporative air cooler work more efficiency, more economical and safe, the regular maintenance is necessary which includes:

      • After a period of operation, the filter screen will be covered with dirt and it should be cleaned periodically to solve the problem of air volume decreasing;
      • Regularly check and repair the abrasive wires and components after long time working;
      • The power should be shut down to ensure safe inspection and maintenance.

    Evaporative Air Cooler Specification

    Model
    LFJ-1
    Airflow
    18000 M3/H
    Power
    1.1 Kw
    Voltage
    220V
    Speed Control
    Single Speed or 12 Speed with Frequency Inverter
    Frequency
    50 Hz /60 Hz
    Fan Type
    Axial Air Cooler
    Size
    1.08*1.08*0.95 M
    Wind out Size
    670*670 Mm
    Wind Outlet Type
    Top and Down and Side Discharge
    Dust Filter
    Yes
    Export Markets
    Global
    Certification
    CE

    For any enquiries, please fill in contact form.
    Thank you for your cooperation.
